JPulse-4™

CURRENT MONITORING

CircuitMeter’s JPulse-4™ is a uniquely designed pulse counter which is able to count pulses produced by any metering device that supports a standard dry contact output. The pulses are detected by the WebMeter36F™ and WebMeter48E™, which sends the pulse information to the CircuitMonitoring™ system in real-time. The JPulse-4™ is designed with both RJ45 and wired outputs and is tightly integrated with the CircuitMonitoring™ system which will automatically convert the pulse signals from measuring water, gas, steam, and even generate an event counter.

Description

Monitoring Capabilities

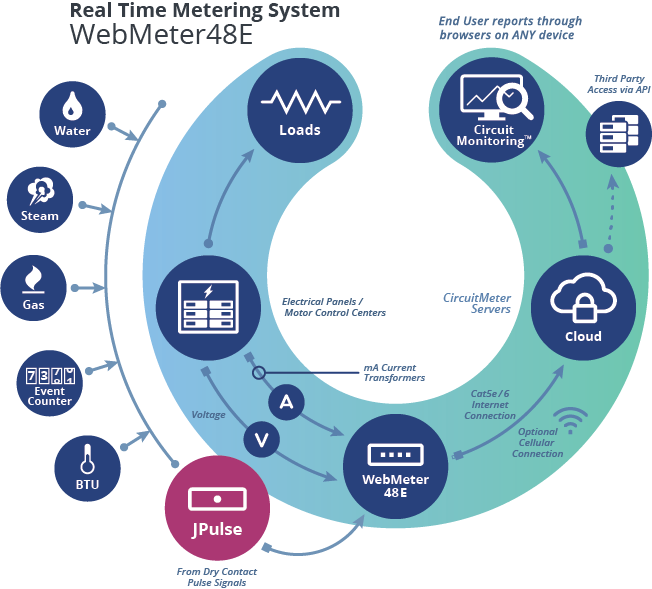

Upon configuration, the CircuitMonitoring™ system will remotely reconfigure the port on the WebMeter36F™ and WebMeter48E™ to switch to reading pulses (rather than current). This allows for total flexibility within the overall design of the CircuitMeter solution where the WebMeter36F™ and WebMeter48E™ are able to sense voltage, current and pulses.

The CircuitMonitoring™ system will generate reports and analytics for:

  • Water
  • Gas
  • Steam
  • Event Counter
  • Plus, any custom measurement(s) from dry contact pulse readings

Safety Standards

  • UL 61010-1
  • CAN/CSA C22.2 No. 61010-1
  • E113521
  • CE

Mechanical

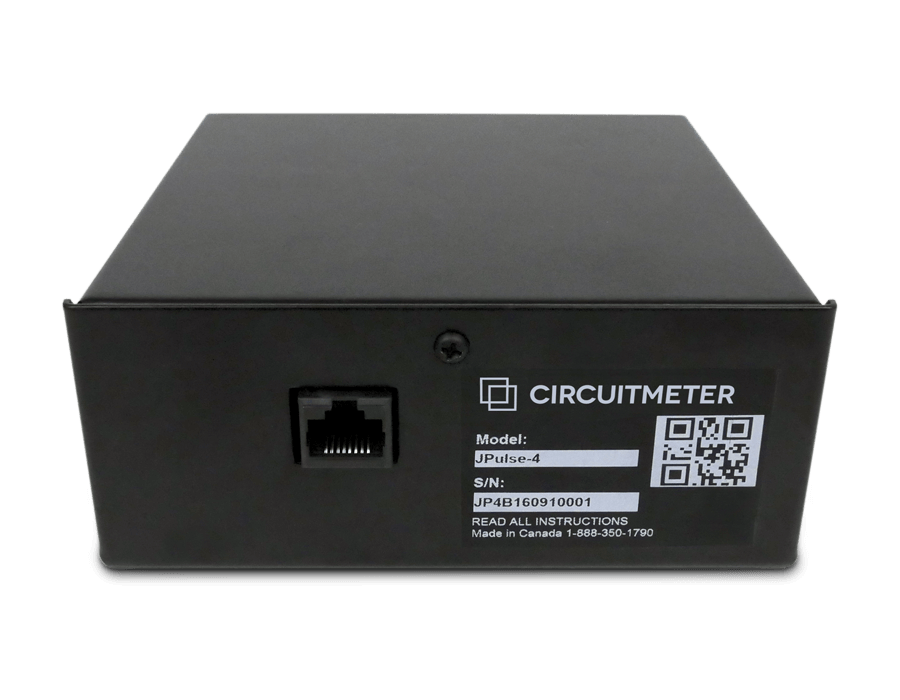

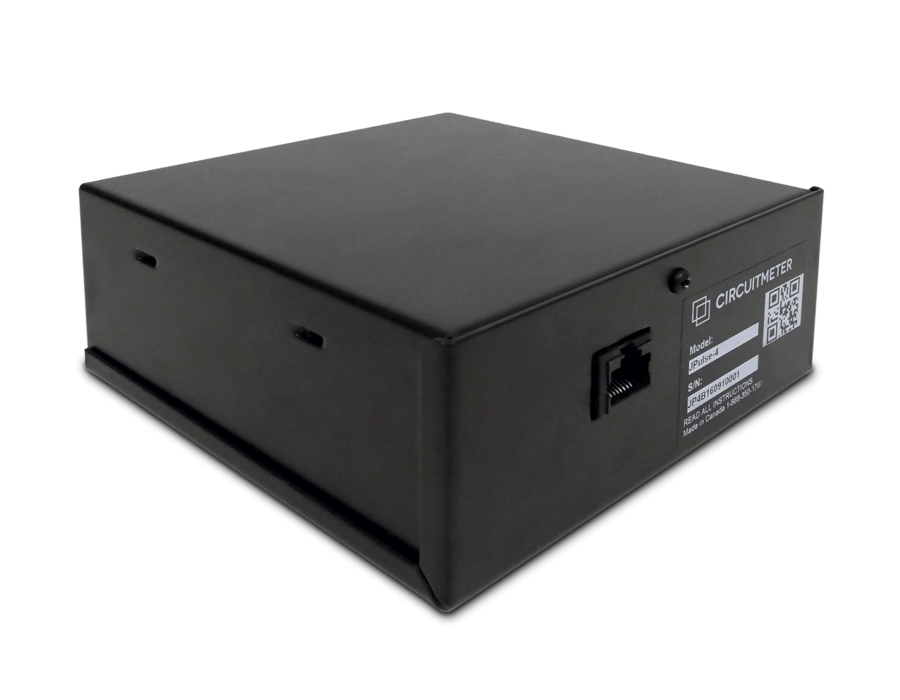

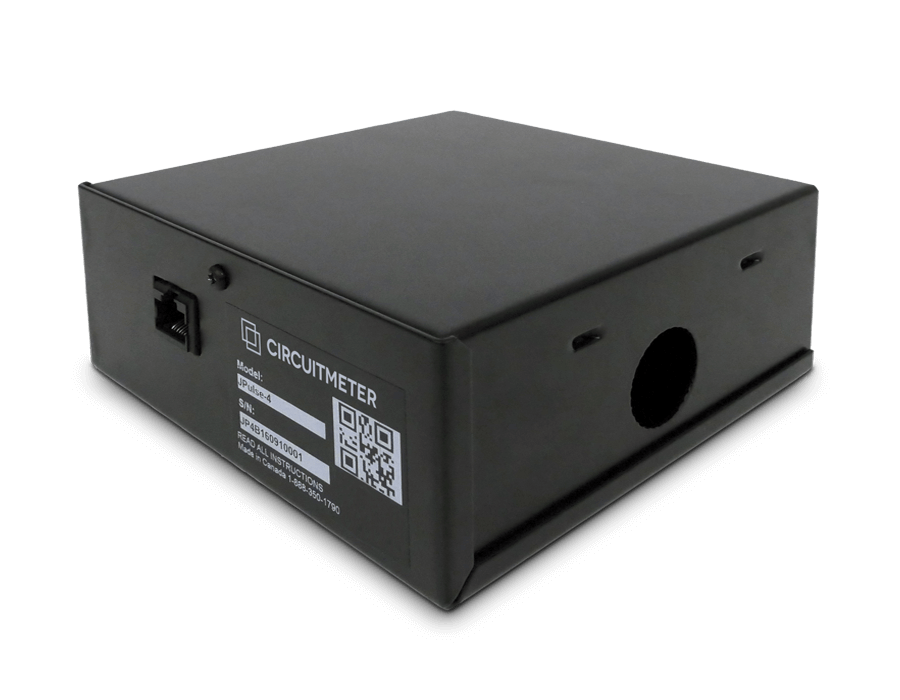

The JPulse-4™, which detects industry standard dry contact pulses, utilizes a 3 wire connection (common, loop, and pulse) with the option for 2 wires. The various voltage levels are presented as outputs via the built-in RJ45 jack (connected to the WebMeter36F™) or wired outputs (connected directly to the WebMeter48E™) for pulse detection and interpretation of each pulse is calculated within the CircuitMonitoring™ system. The JPulse-4™ is enclosed in a metal box.

Mechanical & Dimensions

Weight: 640 g (1.41 lbs)
Size: 12.192 cm / 4.80 in (W)
12.192 cm / 4.80 in (H)
5.080 cm / 2.00 in (H)

Environmental

Operating Temp: 4°C to +40°C
Storage Temp: -17°C to +80°C
Humidity Range: 10 to 90% non-condensing
Enclosure: Metal

Flexible Architecture
icon-water  icon-gas  icon-steam

illus_eventcounter

Specifications

Type 3 Wire Dry Contact
(Common, Loop & Pulse)
Isolation 2500 VAC (Hot Pot)
Power 6V AC Adapter (Inc.)
Contact Current 10 mA (Maximum)
Pulse Width 100 ms (Minimum)
Update Rate 10 seconds (to Host)
Pulse Generators 1 to 4 monitored
3 Wire Cable 1000 feet (Maximum)
Cat5e Length 100 feet (Maximum)

Features

  • Active cable break detection
  • Active AC power loss detection
  • Very low pulse current required

Requirements

  • WebMeter36F™ with VoltageSensor™ or WebMeter48E™
  • JPulse-4™
  • CircuitMonitoring™
